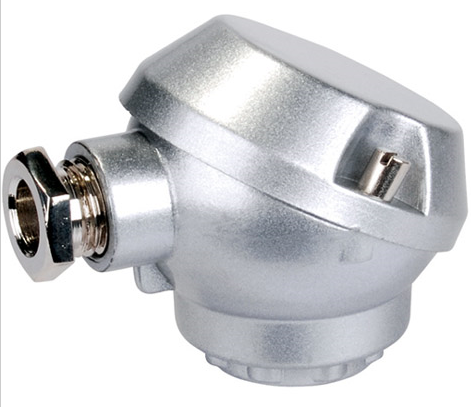

Anti Corrosion MAA Thermocouple Connection Head with High Mechanical Strength
Description:
We are one of the Temperature and Instrument Society which belongs to China Instrument Association. We manufacture the related products according to this association, Passed ISO9001:2000 quality system authentication. all of our products with the following features:
1. Mullti explosion-proof type, good explosion-proof performance
2. Wide measuring range
3. High mechanical strength and good pressure-resistant performance
4. Certain modification can be done according to your designs
Specifications:
1. MAA Thermocouple head
2. Type: MAA, all type available
3. Material: Aluminum(ADC-12), Stainless steel
4. Wire entry: M16*1.5
5. Probe entry: M12*1, M10*1, G1/8’’
6. Standard wire entry and probe entry;
7. Wide range of specification;
8. High precision painting
9. Accessory: cover sealing and cable gland sealing in silicone free material
10. Protection level: IP65 of IEC529 Enclosure protection class
11. Place of Origin: China (Mainland)
12. Eco-friendly: Yes
13. MOQ: 50PCS
14. Certificate: ISO,
15. Making sample time: all type in stock
16. Trade term: FOB, EXW, CIF, CFR
17. Payment term: T/T, Western Union, Paypal
Technical Drawing
Applications:
1. Excellent appearance with fine finish.
2. Assembling easily.
3. Available for Spring-loaded blocks.
4. H=19 33 36 40mm size is suitable for various types of blocks, an international design.
5. Can assemble with thermocouple and RTD
Competitive Advantage:
1. Beautiful outlook and good performance
2. Suitable for all kinds of thermocouple or thermal resistance and RTD
3. High precision painting
4. All sizes available
5. Make head with logo according to your demand
6. Excellent corrosion resistance
7. Moisture and dust-resistant
